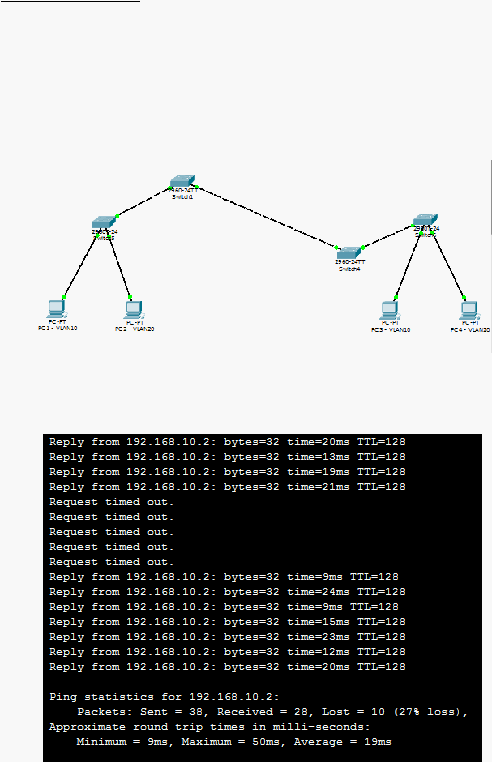

Figure 5.20 The result of switch 2 and switch 3 cut
Sixth Fault Condition
In this sixth fault condition, switch 2 and switch 3 are cut to see how the packets
will react with the lost connection to switch 2 and switch 3. Switch 2 and switch
3 is the determined path from PC 1 to PC 3.
Figure 5.19 Switch 2 and Switch 3 are cut
 |
