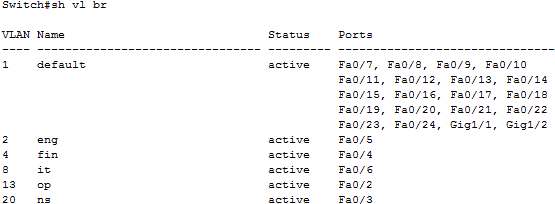

Figure 5.5 Show VLAN Brief (Switch E)
In the Figure 5.2 above, there is only core switch and distribution switch, this
design minimize the number of hops that previously occurs in the existing
system of the Switch
E
to
improve
the performance of the traffic.
The
VLAN
that has been configured makes no division can have connection to other
divisions, in other words no connection in every division that
makes the security
inside
the
network system more secure.
With
VLAN
implemented,
it will
helps
administrator
to
manage
the
broadcast domains,
no
high
broadcast
traffic
in
the
network traffic that previously dominate the total traffic in BUMA.
5.4
Discussion of the Result
After the topology has been designed and put into the Packet Tracer. The author
configured the workstation/devices into a right configuration; one with no VLAN
and just connecting
all devices and one
with
VLAN
and clustering switch.
All
the devices has been configured correctly, except for the clustering switch.
Simulation
using
Packet
Tracer
has
some
limitation
that
need
to
be
faced. In
Packet Tracer, author cannot configure the clustering switch because of
the type
 |
