4.
Depends on
Depends On is a type of relationships where
dependability is exists between one use case with
the other use case. In Figure 2.10, use case Make a
Withdrawal is depended on use case
Make a
Deposit being completed first. Use case Make a
Deposit itself in turn is depended upon the
completion of use case Establish Bank Account.
This is a sample of depends on relationship.

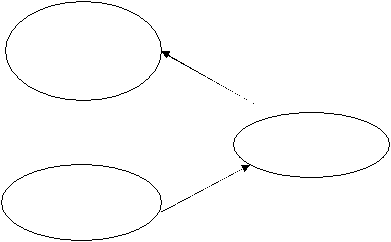

Figure 2.8 Depends On relationship
<<depends on>>
<<depends on>>
Establish Bank
Account
Make A
Withdrawal
Make a Deposit
 |
