5.2
Current Network
The current network of BUMA has no VLAN, so every device in all departments
connects with others. Here is the simulation topology of the current network:

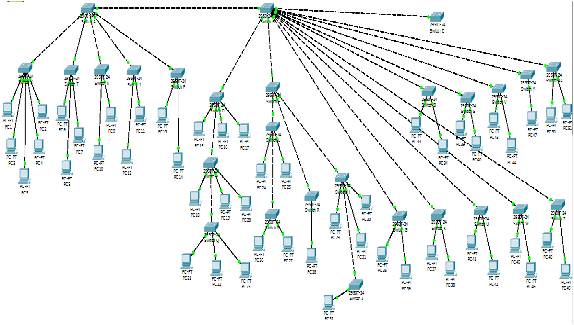

Figure 5.1 Simulation of current network system
IP Address: 192.168.12.11 – 192.168.12.61
The
simulation
in
here
represents
the
current
network
system in
BUMA
like
in
figure 3.2. In the context of conceptual switch, switch A and switch B are being
the core switch that
is connected to
the distribution
switch. The switch
E
in
here
become
a
distribution
switch
and
distribute
the
packet
to the
switch
below
it,
which
is switch L, switch R, and switch H. The switch M connected to switch
L
and
switch
I
connected
to
switch
H. It
can
become
a
problem
in
the
performance,
because
there
are
too
many
hops
for
switch
M
and
switch
I
that
 |
