2.1.4.5 Process Decomposition
Decomposition, according to Whitten [4], is the act of breaking a system into its
component subsystems, processes, and sub processes. Each level of abstraction reveals
more or less detail.
A decomposition diagram or hierarchy chart shows the top-down,
functional
decomposition of a system.

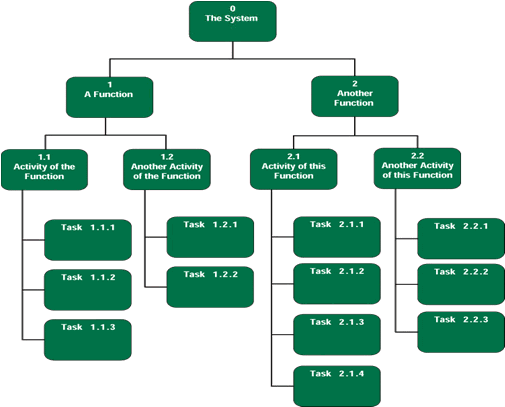

Figure 2. 13
Functional Decomposition
(Source: Whitten, Jeffry L.,
Bentley, Lonnie D., and Dittman, Kevin C. 2000. System Analysis and Design
Methods)
 |
